Introduction
Infrastructure maintenance during harsh winter months has long presented a significant challenge for transportation departments, often requiring heavy reliance on chemical de-icing agents. A groundbreaking development in Nebraska is now challenging traditional winter road management by utilizing a self-heating bridge that actively melts snow and ice during storms.
The Nebraska bridge heats itself from inside to melt snow during storms, representing a potential shift in how civil engineers approach road safety in freezing climates. By integrating advanced materials directly into the structural composition of the crossing, researchers have developed a proactive solution to the persistent dangers of icy surfaces.
What Happened

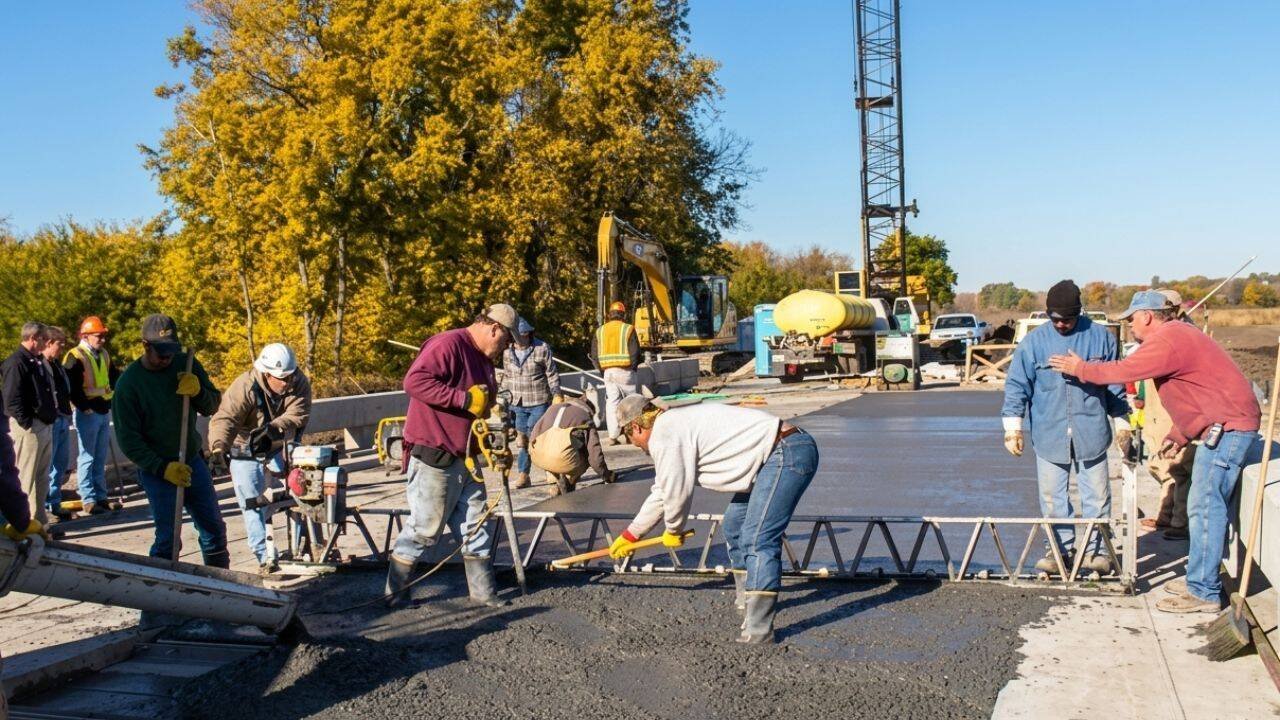

The innovation centers on the deployment of 52 specialized slabs of conductive concrete, which serve as the primary heating element for the bridge surface. This conductive material is engineered to generate sufficient thermal energy to dissolve accumulated snow and prevent the formation of dangerous ice layers.
The system functions through the flow of electricity directly through the concrete slabs. By transforming the bridge deck into a heating element, the technology eliminates the need for manual clearing or the heavy application of salt and other chemicals that are typically required to maintain traction for commuters during inclement weather.
Background
The technology was spearheaded by Chris Tuan, a professor at the University of Nebraska-Lincoln. His research focuses on the intersection of material science and civil engineering, specifically investigating how conductive properties can be integrated into standard construction materials like concrete.
The conductive nature of the concrete is achieved through a precise mixture of steel shavings and carbon particles. When integrated into the concrete matrix, these components create a pathway for electrical currents to move through the material, effectively turning the bridge into a large-scale heating pad.
Key Details
The engineering behind this self-heating bridge relies on the specific conductive properties of the materials used in the concrete slabs. The following data highlights the primary components and the scope of the current installation in Nebraska.
| Feature | Specification |
|---|---|
| System Component | Conductive concrete slabs |
| Quantity Installed | 52 slabs |
| Primary Conductive Materials | Steel shavings and carbon particles |
| Mechanism | Electrical current flow for thermal generation |
Impact
The broader implications of this technology extend well beyond the single bridge installation in Nebraska. If scaled successfully, this conductive concrete could be utilized in various high-risk infrastructure zones where ice accumulation poses a major threat to public safety.
Key areas that could benefit from this innovation include airport runways and tarmacs, where ice poses significant operational risks. Additionally, high-traffic intersections that are prone to freezing could see a drastic reduction in accidents if the road surface is able to maintain a snow-free state autonomously.
Furthermore, the environmental impact of this technology is noteworthy. By reducing the volume of de-icing chemicals currently deployed on roads, municipalities could mitigate the runoff of salts and other substances that often contaminate local water supplies and degrade the structural integrity of bridge piers and road foundations over time.
What Happens Next
While the current application serves as a functional testbed for the technology, the system remains a subject of interest for its potential integration into wider infrastructure projects. The research led by Professor Tuan continues to explore how this conductive concrete can be standardized for broader implementation across diverse icy environments.
Future developments will likely focus on the scalability of the electrical systems required to power these slabs and the long-term durability of the concrete under varying loads and temperatures. As the engineering community monitors the performance of the Nebraska bridge, the viability of replacing traditional chemical de-icing methods with this electrified concrete approach will become clearer for transportation authorities worldwide.
